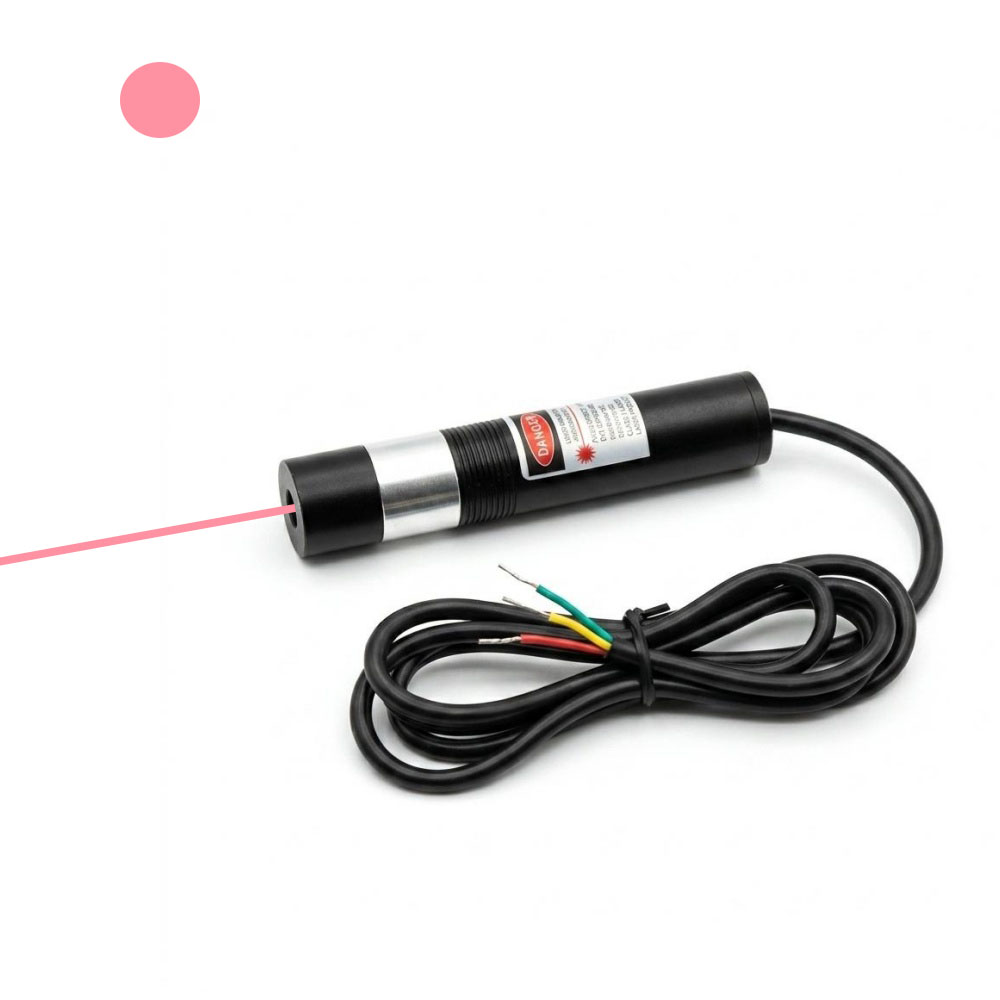

Under condition that users are trying to make long operating time lasted dot generation for various industrial precise dot positioning works, unless the use of any visible laser device or other manual dot projecting tool, it would become a much better solution for engineers and professionals to apply a night vision illumination used device of a TTL modulation 980nm infrared laser diode module. It keeps work with intense and powerful infrared laser light source generation directly from an import 980nm infrared laser diode. Basically it is equipped with basic thermal emitting system inside a different dimension metal housing tube. When it makes correct use of output power and properly equipped operating voltage TTL modulation power source, this direct diode emission made TTL modulated infrared dot laser achieves high stability, low production cost and noncontact infrared dot indication onto multiple working surfaces conveniently.
When TTL modulation 980nm infrared laser diode module gets the special use of TTL high speed modulation, employed by an import 980nm infrared laser diode within 5mW to 500mW, it is able to generate invisible infrared light source at a long extending distance. It utilizes TTL level signals for high speed laser switching. In industrial precision positioning scenarios, the emitted infrared laser dot serves as a spatial reference marker. When TTL modulation infrared dot laser gets the special design of a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, selected with 16mm, 18.9mm and 26mm diameter, it gets sufficient space leaving for tube heat dissipation, increasing stability infrared light source and infrared reference dot projection as long as 24 hours per day.
Usually TTL modulation 980nm infrared laser diode module emits invisible IR light from the beam aperture, thus it is integrating with infrared cameras, machine vision systems, robotic arms, and PLC controllers via TTL synchronous triggering, the system ensures precise alignment between laser emission and image capture. This enables workpiece coordinate positioning, reference alignment, and offset calculation, achieving non-contact precision alignment. As the infrared alignment laser dot is invisible to the naked eye, it causes no visual disturbance to on-site operators. In process of continuous dot positioning work, owing to its invisible IR light emission, there is also no glaring visible light to disturb on-site operations, eliminating visible light interference for light sensitive workpieces.
Cooperated with a qualified glass coated lens and adjustable focus optic lens, once TTL modulation laser diode module gets highly concentrated and powerful infrared light, it is forming into a clear infrared reference dot, ideal for high precision single dot marking with excellent positioning repeatability. There is minimal interference from ambient workshop lighting on the 980nm infrared laser dot, ensures stable detection even in complex industrial lighting environments. When infrared alignment laser is operating with basic obeying of potential thermal energy hurt to eyes, after proper wearing of laser safety goggles, it enables secured and precise IR dot indication for automated assembly stations, machine tool alignment, semiconductor component positioning, and robot vision guidance etc.
