Whenever precise dot generation is required to continue for a quite long time, either pointing at close or long distance, and other harsh working environments etc, a lot of engineers and factory workers would prefer to apply a highly intense beam emitted tool of a 405nm violet laser diode module. The specially used 405nm gets strong wavelength adaptability, which is the standard excitation wavelength for a large number of fluorescent dyes, photocatalysts, and photosensitive materials, making it highly versatile. Being made with an external electric power source and basic use of thermal emitting system design inside a highly durable and ultra compact size tube design, this direct diode emission made violet dot laser alignment enables easy reaching, good direction and noncontact violet laser and violet reference dot projection for multiple industrial and high tech fields conveniently.
Basically 405nm violet laser diode module applies an AC/DC adapter as its beam emitting source. In order to make it work in various working environments, it has been made with an import 405nm violet laser diode within 50mW to 100mW and higher power of 150mW to 500mW. Cooperated with different dimension meta housing tube of 16mm, 18.9mm and 26mm diameter design for different output power range, only if there is larger space leaving for tube heat dissipation, this direct diode emission made violet dot laser alignment achieves superior laser beam stability, long term lasted violet laser light and violet reference dot projection as long as 10 hours per day. Owing to its high laser beam quality and good coherence, it is always suitable for fundamental research with high beam quality requirements, such as holography, interferometry, and imaging.
When qualified glass coated lens and adjustable focus optic lens are applied inside a durable metal housing tube, 405nm violet laser diode module keep work with high photoelectric ability violet light emission. Cooperated with a small divergence angle, after its properly adjusted laser beam focus and violet reference dot projecting direction, the generated violet laser dot is fine, with good collimation, and concentrated energy, making it suitable for micron-level precise excitation, positioning, and processing. After its correct use of output power and correct operating voltage electric power source supply, this violet dot laser alignment allows for stable power, low noise, and good experimental data repeatability, allowing for high-precision measurements and long-term experiments.
Applications in scientific research fields:
405nm violet laser diode module is a general purpose violet laser light source in research fields such as optics, materials science, biology, physics, and chemistry. It is suitable for research in fluorescence imaging, holographic optics, micro/nano fabrication, photocatalysis, and precision detection, and has advantages such as high wavelength matching, fine spot size, stable power, easy integration, and high cost-effectiveness.
Fluorescence Spectroscopy and Microscopic Imaging. Violet alignment laser is providing excitation source for confocal laser scanning microscopes and fluorescence microscopes, biofluorescence imaging, cell/tissue observation, fluorescence resonance energy transfer, and fluorescence lifetime imaging
Photophysics and Optical Experiments. Holographic optics, interference experiments, grating and diffraction research, laser collimation, optical path calibration, precision optical experimental source.
Micro/Nano Fabrication and Photolithography Research. Laser direct writing, micro/nano structure fabrication, photoresist exposure, microfluidic chip fabrication, micro-etching and modification of thin film materials
Category: laser diode module

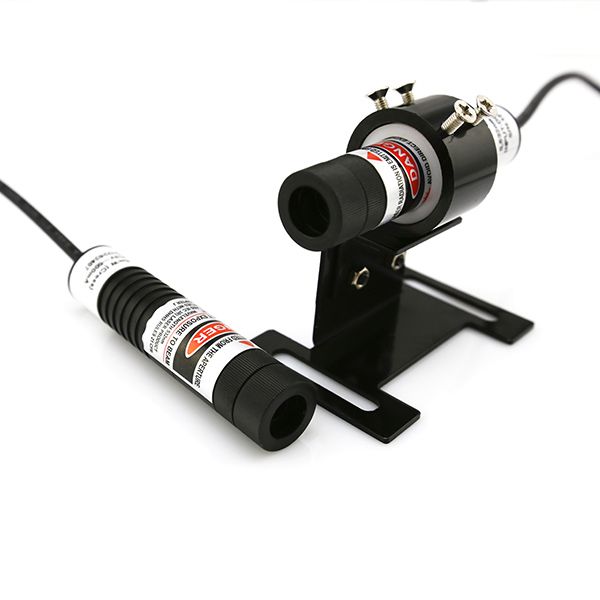

High Absorption 445m Blue Laser Diode Module with Multiple Field Use
Whenever 445nm blue laser diode module projects highly intense and powerful blue laser light from an inner laser diode, not as bright as a 473nm blue DPSS laser system, it still makes ultra longer time lasted blue light source. It is featured by high absorption rate laser light emission. For instance, copper and gold can absorb 5 to 10 hours more at 445nm than infrared, which is significantly improving processing efficiency and reducing energy consumption. Being made with an external electric power source supply and basic use of thermal emitting system inside a sealed and durable metal housing tube, this direct diode emission made blue dot laser alignment enables good direction, high brightness and high stability blue dot indication for multiple raw material processing works conveniently.
Basically 445nm blue laser diode module applies an import 445nm blue laser diode within 50mW to 100mW and high power up to 150mW to 200mW as its beam emitting source, which is required to make long time lasted blue light and blue dot generation from beam aperture. As a result, it gets special use of a metal heat sink cooling system inside different dimension anodized aluminum alloy housing tube, which assures superior nice heat dissipation and increasing stability blue dot projection in continuous use. Usually blue dot laser alignment allows constant dot indication within 10 hours per day, unaffected by increasing temperature and serious electric current impact as well. Owing to its short wavelength, small focused spot and high resolution, it is applicable for higher cutting and engraving precision fields easily.
In order to get ideal dot alignment accuracy at a longer distance, 445nm blue laser diode module not only adopts a qualified glass coated lens, but also applies adjustable focus optic lens design. It can make highly powerful and intense blue light emission, and converts into an increasing accuracy and brightness blue dot projection at an even longer distance. After special configuration with APC, ACC driving circuit board design, whatever output power it is selected, it enables high work efficiency, long lifespan, high electro-optical conversion efficiency. This blue alignment laser enables low power fluctuation, stable continuous operating temperature and low low attenuation rate. After its proper integration into any industrial and high tech applied device or equipment, it makes easy reaching, noncontact and no track dot alignment for all application fields conveniently.
Applications of 445nm blue laser diode module:
Industrial Processing. Welding of highly reflective metals such as copper/gold/aluminum, 3D printing, cladding, laser cutting; 5+ times higher efficiency than infrared, no spatter, stable molten pool.
Medical and Biological. Fluorescence excitation, cell detection, flow cytometry, DNA sequencing, medical instrument light source.
Detection and Analysis. Water quality/environmental fluorescence detection, spectral analysis, material composition detection, lidar.
Display and Projection. Laser projection, micro-display, stage lighting, laser pointers/markers.
Others. Laser marking, precision alignment, laser plate making, scientific research experiments, laser communication.
Multiple Applications of DC Power 980nm Infrared Laser Diode Module
When highly precise and clear dot indication is in serious need for multiple night vision illumination application fields, not able to rely on a simple laser pointer or any other manual dot projecting tool, it would be a much better solution to apply a long wavelength made device of a 980nm infrared laser diode module. Being made with an import 980nm infrared laser diode and a qualified optic lens, owing to its invisible infrared laser light and IR reference dot projection to the human naked eyes, it always gets extremely strong stealthy. Cooperated with other night version observing device or equipment, a correct output power made infrared dot laser alignment enables easy reaching, highly precise and clear infrared reference dot indication for all working occasions conveniently.
The basic use of a 980nm infrared laser diode module belongs to a near infrared laser device, which should only be working together with other night version device, such as CCD camera, black and white camera or infrared camera etc. Employed by an import 980nm infrared laser diode within 100mW to 500mW and high power up to 600mW to 1000mW, for the most important of all, it is equipped with a metal heat sink cooling system inside its durable anodized aluminum alloy housing tube. When infrared dot laser alignment gets superior nice heat dissipation and thermal conductivity, it also bears wide range operating temperature, vibration or shaking in continuous use.
Besides its adoption of a qualified glass coated lens, 980nm infrared laser diode module adopts adopts adjustable focus optic lens design. It can easily get highly concentrated energy, and converts into an increasing accuracy and brightness infrared reference dot at a longer distance immediately. The minimum IR dot size is less than 1mm, and positioning accuracy of ±0.1mm. Usually this wide range output power made infrared dot laser alignment is adaptable to different distances and penetration requirements. Owing to its small divergence angle, whatever kind of working condition it is operating, it maintains precise dot positioning, strong infrared light penetration, and resistant to smoke or dust etc.
Applications:
Security Monitoring. 980nm infrared laser diode module is applied for infrared night vision illumination, covert surveillance, license plate recognition, drone night flight illumination. Equipped with infrared cameras, it is achieving clear imaging in low-light environments without exposing the light source.
Industrial Positioning and Inspection. IR laser dot is workable for precise alignment and path guidance for machining, welding and cutting, 3D structured light, ToF depth cameras, LiDAR core light sources, semiconductor/PCB micromachining, dimensional measurement, defect detection.
Scientific Research and Medical. Infrared alignment laser is used for spectral analysis, fiber optic sensing, biological tissue imaging, blood oxygen detection, laser medical fields for precise targeting of tissues and minimizing damage.
Special and Intelligent Equipment. It is applied for military/tactical covert aiming, infrared designation, intelligent transportation, robot navigation, and industrial automation positioning etc.
Performance Advantages of 808nm Infrared Laser Diode Module In Laser Processing
Once users are looking for a high efficiency and high precision dot positioning for night version dot positioning fields, it makes a good job to apply a long wavelength made device, such as a 808nm infrared laser diode module. Employed by an import 808nm infrared laser diode and a qualified optic lens inside a durable metal housing tube, unlike the formal infrared laser pointer only used for temporary dot positioning work, it gets even better thermal emitting design and constant power source supply. After its proper equipment with night version device and installation or integration into night version device, this direct diode emission made infrared dot laser alignment enables easy reaching, low power and time consumption dot measurement and positioning results for all laser processing works conveniently.
Basically 808nm infrared laser diode module gets easy connects with an AC/DC adapter, not spending extra time on prior battery power source change, it enables long term lasted infrared light and infrared reference dot projection from beam aperture. It applies an import 808nm infrared laser diode within 5mW to 400mW and 500mW to 1000mW output power, equipped with inner cooling system or separate metal heat sink part for different output power range, this durable anodized aluminum alloy housing tube made infrared laser alignment always gets larger space leaving for tube heat dissipation, increasing stability infrared light and IR dot generation in long term use.
808nm infrared laser light is invisible, eliminating stray light interference with the main laser processing optical path. The infrared dot emitted from a infrared laser diode module has high collimation and strong focusing, with a positioning deviation of <0.03mm, suitable for micro-precision processing scenarios. Basically it is equipped with a qualified glass coated lens, after its projection of high photoelectric ability infrared laser light emission, it also converts into ultra compact size and precise infrared dot projection at greater distance. When infrared dot laser alignment makes easy adjustment of laser beam focus, after its immediate infrared light concentration, it is converted into an increasing accuracy and brightness IR dot projection in distance immediately.
Being made with ultra compact size design, this 808nm infrared laser diode module allows for embedded installation in confined spaces such as processing heads and robotic arms. It is supporting continuous or pulsed light output, which can be directly connected to the control system of laser processing equipment without additional debugging. Infrared alignment laser light is unaffected by strong ambient light or backlighting in the workshop. Even in open-air/high-light conditions during laser processing, it maintains clear positioning, avoiding visual positioning failure issues.
Applications in laser processing:
Laser Cutting and Engraving Pre-positioning: Serving as a cutting origin/processing path marker, it precisely marks the starting point and key positioning points before cutting/engraving metal sheets, non-metallic sheets (acrylic, wood), and precision hardware parts. This allows the main laser to quickly align with the processing position, reducing wasted path travel and improving processing efficiency, especially suitable for small-size, multi-point precision cutting scenarios.
Laser Welding Precise Alignment: Integrated into the laser welding machine head, 808nm infrared laser diode module is used for weld start point/weld point positioning and component docking point marking. In the welding of micro-workpieces such as lithium battery tabs, automotive precision parts, and electronic pins, it achieves precise fit between the weld and the welding gun, avoiding incomplete welds and off-center welds, and improving weld yield.
Laser Marking Assisted Positioning: In laser marking of metal parts, plastic parts, and electronic components, it marks the reference point/center point of the marking area, solving the problems of workpiece clamping offset and marking position deviation. It is suitable for small-area marking scenarios such as QR codes, logos, and precision scales, ensuring consistent marking positions.
Laser Marking Assisted Positioning: In laser marking of metal parts, plastic parts, and electronic components, 808nm infrared alignment laser marks the reference point/center point of the marking area, solving the problems of workpiece clamping offset and marking position deviation.
Special Use of 650nm Red Laser Diode Module In Laser Marking Work
Whenever highly precise and clear dot indication is in need for laser marking works, not able to rely on a simple red laser pointer or other manual dot projecting tool, it would be a much better solution for engineers and factory workers to operate a highly intense and bright beam emitted tool of a 650nm red laser diode module. It is not simply projecting the similar red laser light and red reference dot as a red laser pointer, but also getting even better thermal emitting, thus it achieves long term lasted red light and red dot indication from beam aperture. When red dot laser alignment gets proper use of output power and operating voltage electric power source, not limited by long distance or high height, it always brings users easy reaching, good direction and noncontact red dot alignment onto multiple working surfaces conveniently.
Basically 650nm red laser diode module gets easy connects with an AC/DC adapter, accepting wide range electric current of 100V t 240V, thus it is applicable for various working environments. Usually 650nm red light has a high absorption rate on non metallic materials, resulting in excellent marking efficiency and the ability to form clear marks without high power. Employed by an import 650nm red laser diode within 5mW to 100mW and high power up to 150mW to 500mW, and a metal heat sink cooling system design inside a durable anodized aluminum alloy housing tube, this direct diode emission made red dot laser alignment just gets sufficient space leaving for tube heat dissipation, and achieves increasing stability and brightness red light and red dot indication in long term use. It also gets no effect by overheating and over current impact as well.
Cooperated with adjustable focus optic lens and a qualified glass coated lens inside the durable anodized aluminum alloy housing tube, 650nm red laser diode module keeps work with highly powerful red laser light concentration, and efficient conversion of increasing brightness and accuracy red dot projection at longer distance and higher lighting working occasions. The focused red laser dot can reach a diameter of tens of micrometers, providing high marking precision and meeting the requirements for marking tiny characters (≥0.1mm). Owing to its ultra compact size and lighting weight design, this red alignment laser is easily integrated into any small marking machines, resulting in low low hardware costs and suitability for entry-level marking equipment.
Applications in laser marking works:
Non-metallic Material Marking: Red laser light is easily absorbed by non-metallic materials such as paper, leather, wood, acrylic, and plastics (ABS/PP), forming clear, shallow marks (e.g., logos, production dates, QR codes).
Micro-marking of Small Electronic Products:650nm red laser diode module is marking earphone shells, data cable interfaces, and the surface of miniature sensors, meeting the precise marking needs of small workpieces.
Marking of Flexible Materials: Fabrics and silicone products, avoiding material deformation at low power, achieving non-destructive marking.
DIY Handmade/Cultural Creativity Marking: Personalized custom jewelry and stationery engraving, with a low operating threshold, suitable for small desktop marking machine scenarios.
High Positioning Accuracy Glass Coated Lens 660nm Red Laser Diode Module
Unlike the use of a simple laser pointer only used for temporary dot positioning work, in order to make long term lasted dot positioning works for various industrial positioning fields, it has become a major trend for engineers and factory workers to apply a highly intense beam emitted tool of a 660nm red laser diode module. It gets constant electric power source supply and proper integration into any industrial device or equipment. Basically it applies an import 660nm red laser diode and a qualified optic lens inside a durable housing tube, either it is pointing at close or long distance and ambient lighting occasions etc, this direct diode emission made red dot laser alignment enables high precision, good direction and high stability red dot generation onto multiple working surfaces.
This 660nm red laser diode module emits the similar red laser light and red dot emission as a red laser pointer, however, it should have to make even longer time dot indication in various dot positioning works. It applies an import 660nm red laser diode as its beam emitting source. Owing to its mass production and mature laser diode tech development, it is not only supporting long term lasted red dot projection, but also getting quite low production cost. No matter red dot laser alignment is used for industrial or high tech precise dot positioning work, it always gets wide applications and enables high stability dot generation for multiple application fields, including laser marking, laser engraving, drilling system, high tech and lab experiment work etc.
Cooperated with a qualified glass coated lens and adjustable focus optic lens, whenever it gets highly powerful and intense red laser light concentration, this 660nm red laser diode module enables immediate red light source concentration, and converts into increasing accuracy and brightness red reference dot projection at different work distances. The red reference dot is clear and sharp, with positioning deviation controllable within millimeters. This red dot laser alignment makes high penetration red laser light emission from beam aperture, as a result, even though it is used in bright sunlight and dusty environments, it remains clearly visible red reference dot projection, and is not easily affected by interference. Owing to its ultra compact size tube design, it enables easy integration and convenient maintenance, which can be directly embedded in equipment, and has a long service life, eliminating the need for frequent replacements.
Applications in industrial dot positioning works:
Machinery Equipment: Serves as a positioning reference point for cutting and welding processes, assisting in workpiece positioning calibration.
Automated Production Lines: 660nm red alignment laser provides precise coordinate references for processes such as robotic arm grasping and PCB board assembly.
Warehouse and Logistics Equipment: Works with sensors to provide path guidance for goods sorting and shelf positioning.
Assistance Work of 635nm Red Laser Diode Module In Laser Marking Work
What is a good solution for engineers and professionals to make ultra clear and precise dot indication for all marking works? It is not workable at all to only rely on a simple red laser pointer or manual dot projecting work, it would be a much better solution to apply a high purity light emitted tool of a 635nm red laser diode module. It applies an import laser diode and a qualified optic lens inside a durable metal housing tube, together with its constant electric power source supply and easy installation or integration into any industrial marking device or equipment, this accessory part of red dot laser alignment enables good direction, quick response and high precision red dot indication onto multiple working surfaces conveniently.
Usually 635nm red laser diode module adopts an AC/DC adapter electric power source, accepting wide range electric current of 100V to 240V, thus it is applicable in multiple regions and districts. It applies an import 635nm red laser diode within 5mW to 100mW and 150mW to 500mW as its beam emitting source, equipped with a metal heat sink cooling system inside its durable anodized aluminum alloy housing tube, this red dot laser alignment gets larger space leaving for tube heat dissipation, and achieves ultra stable red light and red reference dot projection as long as 10 hours per day. Within the lowest time consumption, it can quickly completes workpiece pre-positioning, eliminating the time spent on manual marking and repeated adjustments. Preparation time for marking a single workpiece is reduced by more than 60%, improving the overall production line cycle time.
When 635nm red laser diode module gets correct output power and proper adjustment of both laser beam focus and dot emitting direction, its precisely focused red dot provides a clear positioning benchmark, effectively reducing alignment errors caused by manual placement. Auxiliary positioning accuracy can reach ±0.1mm, reducing scrap rates. Owing to its matured laser diode tech and low production cost, it can be directly integrated into various new and old laser marking equipment without significant equipment modifications, resulting in low investment and quick returns. Red dot laser alignment also maintains stable red light visibility in the strong light and dusty environments of the marking workshop, and has good adaptability to various marking materials such as metal, plastic, glass, and leather, unaffected by workpiece color.
General applications in laser marking fields:
Marking Area Pre-positioning: 635nm red laser diode module is projecting red dots before marking quickly calibrates the marking center, corner reference points, or boundary contour reference points, assisting operators in accurately placing workpieces at the marking station, replacing manual line marking.
Multi-station Splicing Marking Guidance: For segmented marking of large workpieces and multi-pattern combination marking, red dots mark the splicing reference points of adjacent marking areas, ensuring no misalignment or repetition at the splicing points, improving overall marking accuracy.
Tooling and Fixture Calibration Assistance: Regularly using red alignment laser dots to calibrate the positioning accuracy of the marking machine’s tooling and fixtures, verifying fixture offsets, and making timely adjustments to ensure consistency in batch marking.
Vision System Linked Marking: Linked with the marking machine’s vision positioning system, the red laser dot serves as an auxiliary target for visual recognition, improving the positioning efficiency and recognition accuracy of the vision system for reflective, dark-colored, and small-sized workpieces.
Scientific Research Work of Glass Coated Lens 532nm Green Laser Diode Module
When 515nm wavelength laser diode is applied for the creation of a green laser diode module, it is always projecting the most sensitive green light to the naked eyes, with brightness far exceeding that of red and blue light at the same power. It applies an import 515nm green laser diode and a qualified optic lens inside a durable housing tube, which is also equipped with thermal emitting system. When green dot laser alignment gets constant electric power supply and proper installation or integration into scientific experimental device or equipment, it enables easy reaching, noncontact and highly precise green dot projection. It also remains clearly visible in both low-light and high-light experimental environments, facilitating experimental observation and real-time calibration, and reducing visual errors.
Being made with a qualified glass coated lens and glass window design in front of laser beam aperture, not affected by moisture, dust, rain, water or fog, this 515nm green laser diode module is keeping work with high transmittance and high photoelectric ability forest green light emission at long extending distance. When it gets highly powerful green light concentrated, it can convert into increasing accuracy and good round shape green dot projection in distance easily. It keeps work with stable energy output without drift, fully meeting the core requirements of scientific research experiments for ultra-precise positioning and light source stability, ensuring accurate experimental data. When 515nm green dot laser alignment gets low laser beam divergence, cooperated with adjustable focus optic lens, it is adopted to experimental needs of different precision and scenarios, featured by good light concentration, allowing for switching of working modes as needed, adapting to various experimental schemes.
Usually 515nm green laser diode module gets quite small size tube diameter, which is designed with 16mm, 18.9mm and 26mm diameter for different output power range of 50mW to 200mW. Within the lowest power consumption and low heat generation, it is allowing for flexible integration into various scientific instruments and experimental platforms. It is compatible with different brands of detection and observation equipment, and modification and debugging are convenient without interfering with the overall operation of the experimental device. Owing to its pure light output, 515nm green dot laser alignment causes no additional damage to experimental samples, and will not interfere with the acquisition of other experimental data such as spectral analysis and electrical signal acquisition, ensuring the purity and traceability of experimental results.
Applications in scientific research fields:
Core Applications in Optical Experiments: As a visible light reference source, 515nm green laser diode module is used for optical path calibration, performance testing of optical components, and is suitable for basic optical experiments such as laser transmission, interference, and diffraction. It can also assist in building optical measurement systems.
Physics Research Scenarios: In mechanics experiments, it serves as a reference point for calibrating object displacement and marking motion trajectories; in thermal and electrical experiments, it assists in precise equipment alignment; and it is a core excitation and detection auxiliary light source for quantum physics and optical sensing experiments.
Materials Science Research: It serves as a precise positioning point for material microstructure analysis and surface property testing. It assists electron microscopes, spectrometers, and other equipment in focusing the area to be tested; and it marks monitoring points in material modification and weather resistance testing to achieve long-term tracking observation.
Biology and Life Sciences: 515nm green alignment laser serves as a positioning marker for biological sample observation. It tracks points during microbial culture, which is suitable for microscopic observation and sample sampling positioning, with low power and no damage.
Advanced Adoption of 980nm Infrared Laser Diode Module for Biomedical Field
In any type of ultra clear and precise dot measurement for biomedical fields, a longer wavelength made device of 980nm infrared laser diode module enables excellent biocompatibility. The 980nm near-infrared band has extremely low irritation to normal human tissues and a moderate penetration depth, reaching target tissues of subcutaneous veins and deep muscles without easily causing tissue damage, ensuring high safety. Employed by an import 980nm infrared laser diode and a qualified optic lens inside a durable meta housing tube, only after its easy connects with an external electric power source supply, this direct diode emission made infrared dot laser alignment allows easy reaching, noncontact and no track infrared reference dot projection for multiple night version biomedical treatment fields conveniently.
In practical biomedical fields, the genuine use of a 980nm infrared laser diode module brings operators quite special use. It applies an import 980nm infrared laser diode within 5mW to 500mW and high power up to 600mW to 1000mW, equipped with a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, it enables long term lasted IR laser light generation in long term use. Owing to its superior nice heat dissipation, when infrared dot laser alignment makes constant infrared dot projection within 10 hours per day, it can maintains good laser beam stability, ultra long term lasted and precise infrared dot generation in long term use. Usually infrared light is completely invisible to the naked eyes, it does not produce dazzling strong light during use, does not affect the medical staff’s field of vision, and does not cause visual discomfort to patients, improving the comfort of diagnosis and treatment.
Configured with a qualified glass coated lens and adjustable focus optic lens designs in front of beam aperture, 980nm infrared laser diode module enables strong energy controllability. It allows high photoelectric ability and highly powerful infrared laser light emission, and converts into increasing accuracy and brightness infrared dot projection at a longer extending distance. According to the selection of different output power, it is matching different diagnostic and treatment scenarios as needed, offering excellent adaptability. Whenever 980nm infrared dot laser alignment gets highly concentrated IR laser light generation, it allows for targeted application to specific target areas, avoiding ineffective light radiation and ensuring the accuracy of diagnosis and treatment.
6.Whatever output power it is selected, this APC, ACC driving circuit board made device of 980nm infrared laser diode module enables stable output power with minimal fluctuation in light power output, ensuring accurate detection data and consistent therapeutic effects. Being made with compact structure and small size, this infrared alignment laser allows for easy integration into portable vein imaging devices, wearable health monitoring equipment, and small therapeutic devices, contributing to the miniaturization and portability of medical equipment.
Applications in biomedical fields:
1. Vein Imaging Assistance: As the core light source for vein imaging devices, infrared alignment laser light penetrates the skin surface, clearly outlining the contours of subcutaneous veins, assisting medical personnel in accurate venipuncture, suitable for outpatient blood collection and intravenous infusion.
2. Infrared Physiotherapy and Rehabilitation: Utilizing the 980nm infrared light thermal effect, it acts on local human tissues, promoting blood circulation and relieving muscle strain and joint pain, suitable for rehabilitation physiotherapy and pain management equipment.
3. Biological Tissue Detection: 980nm infrared laser diode module is used for infrared imaging of biological tissues and infrared characteristic analysis of pathological sections, assisting in lesion screening and tissue characteristic research, providing technical support for pathological diagnosis.
4. Non-invasive Health Monitoring: Integrated into non-invasive detection equipment, assisting in monitoring health indicators such as blood glucose, blood oxygen, and tissue water content, obtaining physiological data through the differences in absorption and reflection of infrared light by tissues.
5. Photobiomodulation Therapy: Low-power specifications are used for photobiomodulation, improving cell metabolism and promoting tissue repair, suitable for auxiliary treatment scenarios such as wound healing and mucosal repair.
6. Biomedical Research Experiments: 980nm infrared dot laser alignment is used for infrared response experiments of biological samples, non-invasive observation of living tissues, and infrared characteristic research of biological macromolecules (proteins, nucleic acids) in basic biomedical research.
Unique Use of 808nm Infrared Laser Diode Module for Industrial Processing Works
Whatever kind of working surface users are trying to make ultra clear and precise dot indication for those of industrial processing works, under operation of night version illumination work fields, it always makes an efficient job to apply a long wavelength made device of a 808nm infrared laser diode module. Compared to any other visible laser devices, owing to the adoption of a longer wavelength 808nm infrared laser diode, it projects invisible infrared laser beam and infrared reference dot from beam aperture. When infrared dot laser gets constant electric power source supply and proper equipment with night version device, it enables undisturbed IR laser dot alignment for all inspection works. It also assures low production cost, low thermal energy consumption and high precision infrared reference dot projection for all night version measuring fields conveniently.
Basically 808nm infrared laser diode module gets constant electric power source from an AC/DC adapter, after the acceptation of 100V to 240V operating voltage, it is working well with constant infrared laser beam emission from an IR laser diode within 5mW to 500mW and high power range of 600mW to 1000mW. For the most important of all, when it is used for long term lasted work, it gets advanced use of a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube. Whenever infrared dot laser alignment gets superior nice heat dissipation, equipped with its low laser beam divergence, it is allowing for sub-millimeter positioning accuracy.
Unlike the visible laser devices, longer wavelength 808nm infrared laser diode module emits invisible IR laser light to the human eyes, thus it should only be working together with any night version device, such as a CCD camera, black and white camera or IR laser camera etc. It is applying a durable anodized aluminum alloy housing tube, which bears wide range operating temperature and mechanical moving or calibration. The near infrared laser light exhibits low attenuation in dusty and smoky environments, resisting strong light and electromagnetic interference, making it suitable for stable operation in harsh industrial conditions. Besides its operation of correct output power, infrared dot laser alignment allows proper adjustment of laser beam focus and IR dot emitting direction so as to achieve ideal dot aligning accuracy easily.
General applications in industrial processing works:
1. Precision Positioning and Tool Setting: 808m infrared laser diode module is used for tool setting and path calibration in machine tools, cutting machines, welding machines, etc. The dot-shaped IR laser spot provides precise positioning of the processing reference, suitable for metal/non-metal cutting, PCB assembly, woodworking machinery tool setting, and other scenarios.
2. Industrial Vision and Inspection: 808nm infrared alignment laser serves as infrared supplementary lighting and positioning markers in machine vision systems, assisting in the identification of part contours and surface defects. Suitable for automated sorting, 3D structured light inspection, and semiconductor wafer alignment.
3. Laser Pump Source: High-power laser modules are used to pump Nd:YAG and other solid-state lasers, providing high-energy laser output for metal welding, marking, and micromachining.
4. Material Modification and Curing: Precise irradiation achieves localized heating, used for 3D printing material curing, plastic welding, coating drying, etc., with a small heat-affected zone and high efficiency.
5. AGV and Robot Navigation: Provides infrared positioning points for industrial robots and AGVs, supporting SLAM navigation and precise docking, unaffected by strong light interference.
