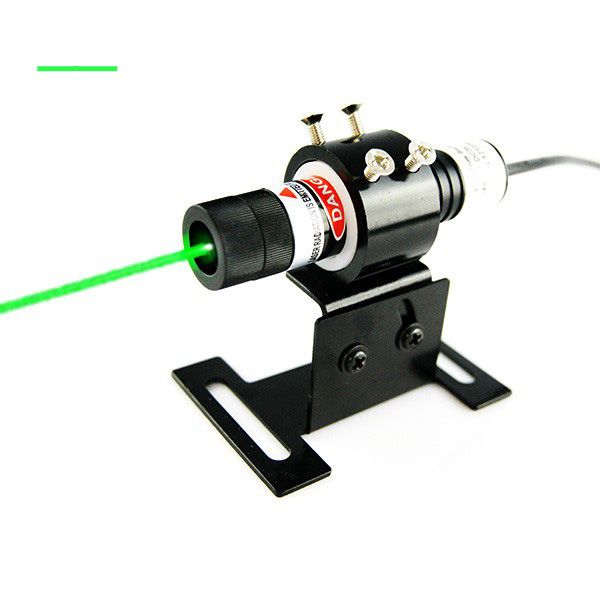

When laser engineers are making constant technical innovation of 515nm green laser diode tech and a qualified optic lens designs inside a highly durable and sealed metal housing tube, it is manufactured into a professional line measuring tool of a 515nm green line laser alignment. It keeps work with constant green light and green reference line projection from the beam aperture. Cooperated with an external electric power source supply and basic thermal emitting system design, direct diode emission made 515nm green laser module not only projects highly sensitive and bright forest green light to the human eyes, but also ensures clear, fine and precise green reference line generation under multiple lighting occasions conveniently.
Usually in order to assure long term lasted and long distance precise line indication, 515nm green line laser alignment applies an import 515nm green laser diode within wide range output power of 50mW to 100mW and high power up to 150mW to 200mW. Supported by 5V, 9V or 12V 1000mA AC/DC adapter, and basic cooling system design inside a different dimension tube, it achieves superior nice heat dissipation and long term lasted green reference line projection under multiple lighting occasions, covering inner room, outside and even strong lighting workshops etc. The projected green reference line is bright, uniform and soft, which provides great comfort during extended use.
Combined with a qualified glass coated lens and adjustable focus lens inside the durable metal housing tube, this 515nm green line laser alignment generates high transmittance and highly powerful green laser, and converts into high fineness green reference line with line width of 0.1 to 0.5mm at close distance, straightness error within 5 meters ≤±0.5mm. When it gets freely selected fan angles of 10 to 110 degrees, green laser line generator projects fine and straight green reference line within 0.5 meter to 6 meters lengths, adaptable to different distances. For the most important of all, owing to quite strict laser beam stability test and aging preventing test before flowing into the laser market, it is able to get drift less than 0.1mm after 8,000 hours of continuous operation, meeting industrial grade stability requirements.
Being made with ultra compact size 16mm, 18.9mm and 26mm diameter metal housing tube for different output power range, 515nm green line laser alignment enables easy installation and integration with industrial or high tech applied machine or equipment, no glare, decay in continuous use. It makes ultra high visibility, micro level precision, industrial grade stability, long lifespan, has become the preferred green alignment laser line solution for industrial positioning, precision machining, medical research, and measuring instruments.
Applications in multiple fields:
Industrial Positioning and Processing
Woodworking, stone and metal cutting: Linear reference lines for board cutting, sawing, and slitting, replacing scribing/templates, improving efficiency and accuracy
Textile and apparel: Alignment laser lines for cutting beds, fabric laying, and sewing; fine, uniform lines visible in strong light
Machinery Manufacturing: 515nm green laser line generator makes clear linear positioning for welding, assembly and inspection, tire forming and assembly line alignment.
PCB / Electronics: Precision alignment; visual inspection markings; micro-machining positioning
Architecture / Decoration: Horizontal / vertical markings; tile laying / ceiling installation; door and window installation positioning
