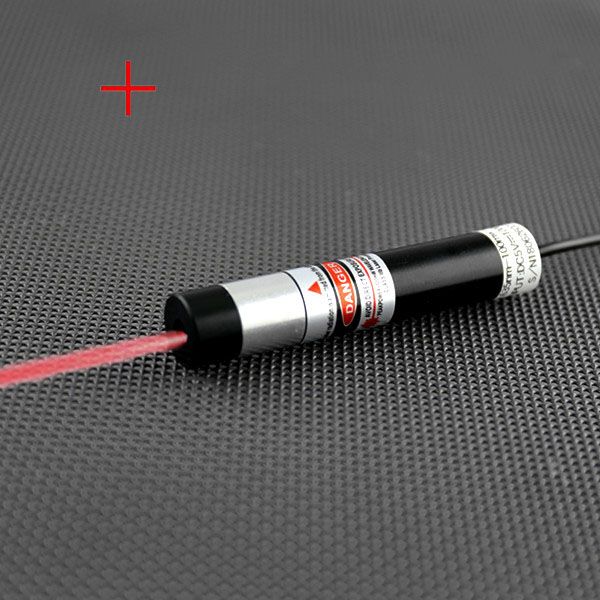

Unlike the use of any prior cross line drawing or printing work, not limited by long distance, high height and other complex working environments etc, it would be a quite efficient job for engineers and garment designers to operate a highly intense beam emitted tool of a 660nm red cross line laser module. Employed by an import 660nm red laser diode and a qualified glass coated lens inside a durable metal housing tube, connected with an external electric power source supply, it makes sure of long term lasted red light and red vertical and horizontal lines generation from beam aperture directly. Within quite low time and energy consumption, not relying on professional skills, this red cross laser alignments provides garment designers clear, noncontact and direct cross line guidance for all garment making, designing and printing works conveniently.
This 660nm red cross line laser module is adaptable to multiple garment cloth, since 660nm red light provides clear contrast on various fabrics such as cotton, linen, silk, synthetic fibers, and leather. Light-colored fabrics are not reflective or glaring, and the markings are clear on dark fabrics, requiring no additional light-blocking. When it gets constant electric power source supply from an AC/DC adapter, not limited by long distance, high height and other complex garment making workshop environments, this red cross laser alignment makes non contact marking, which will not leave chalk stains on high-end fabrics, nor will damage fabric fibers due to friction, ensuring the integrity and cleanliness of the fabric.
Being made with a qualified glass coated lens with 10, 15 and 110 degree fan angles, 660nm red cross line laser module provides both horizontal and vertical references, making it more suitable for the positioning needs of symmetrical garment structures and cross seams compared to single lines. Positioning errors are small, improving pattern consistency. Being made with ultra compact size and durable anodized aluminum alloy housing tube, it allows for flexible installation on various equipment such as pattern-making tables, cutting tables, and sewing machines using a laser alignment mounting bracket. Angle and height adjustments are simple, adapting to the multi-station needs of apparel design. Within the lowest time and thermal energy consumption, this red alignment laser takes into account the cost requirements of independent creation in design studios and mass production in clothing factories.
General applications in garment design works:
Pattern Design and Making: Projecting crosshairs marks the fabric’s reference origin and symmetrical center line, assisting designers in accurately drawing the outlines of garment pieces such as the body, sleeves, and collar, ensuring that the dimensions of symmetrical pieces are completely consistent.
Fabric Cutting: 660nm red cross line laser module is installed next to the cutting table or electric scissors, the crosshairs mark the corner positioning points and seam lines of the garment pieces, aligning the stacking reference for multiple layers of fabric, avoiding the offset errors of manual marking, and improving the accuracy of batch cutting.
Sewing Alignment: 660nm red alignment laser is integrated into the sewing machine head, the crosshairs align with the dart endpoints, pocket/button installation positions, and seam intersections of the garment pieces, assisting workers in quickly aligning and sewing, reducing problems such as crooked stitching and misalignment.
Ironing and Shaping: Crosshairs are projected onto the ironing table to mark baselines such as the collar center line, trouser crease, and skirt waistline, resulting in a more regular and symmetrical pattern after ironing, matching the design expectations.
