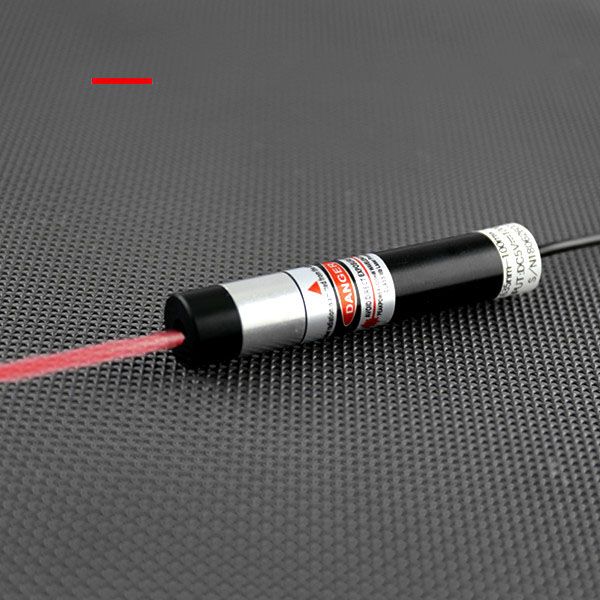

What is an efficient job for garment makers to make ultra clear, fine and bright enough line indication for various garment cloth processing works? It is not easy to rely on primary manual line drawing or printing, but making even better job to apply a highly intense beam emitted tool of a 660nm red line laser module. It applies an import 660nm red laser diode and a qualified optic lens inside a different dimension metal housing tube. Cooperated with an external electric power source supply, after correct selection of both output power and optic lens fan angle, this laser line generator enables high red laser light visibility, ultra fine, clear and straight red reference line guidance onto multiple working surfaces conveniently.
Usually 660nm red line laser module applies an AC/DC adapter as its electric power source, not simply spending extra time on battery change, it is able to make continuous red laser light emission from an import 660nm red laser diode within 5mW to 500mW. In process of long term lasted red line generation, it is designed with a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, which enables superior nice heat dissipation and increasing stability red reference line projection within 10 hours per day. When laser line generator is pointing onto different color and pattern garment cloths, red reference line is still clearly visible under ambient lighting occasions, without bleed-through or residue, eliminating the need for repeated calibration.
When 660nm red line laser module applies a qualified glass coated lens within 10 to 110 degree fan angles, cooperated with adjustable focus optic lens in front of beam aperture, it is able to work with high straightness and high fineness red reference line projection. It enables controllable line thickness of only 1 to 2mm at 2 meters distance. Owing to its noncontact line indication, the whole process of garment cutting work can avoid cloth moving, reducing cut piece error, significantly lowering the scrap rate. Without spending extra time on manual line drawing or positioning work, this red line laser alignment enables conveniently installation, easy adjustment of red line thickness, and high speed line indication for multiple garment cloths processing works conveniently.
Applications in textile industry field:
Precise Cutting: 635nm red line laser module projects a baseline line onto the fabric laying machine/cutting table, replacing chalk/ink lines for quick alignment of patterns and stripes, and positioning of cut piece outlines.
Sewing Auxiliary Positioning: Uses a single-line alignment laser to mark seam positions, bag opening boundaries, and button centers on pocket opening machines, button attaching machines, and flat sewing machines, ensuring straight and uniform stitches.
Hemming/Ironing Guidance: Projects hemming lines onto ironing machines, guiding regular hemming of collars, cuffs, trouser hems, etc., ensuring consistent hemming width in batches and improving ironing neatness.
Sew/Assembly Calibration: Horizontal/vertical lines are projected during garment piece splicing and assembly to calibrate alignment and flatness, ensuring seamless and misaligned seams, such as shoulders and side seams.
Quality Inspection Assistance: Red laser line generator is marking dimensional baselines allows for quick comparison of garment dimensions, aiding in determining compliance with process standards and improving quality inspection efficiency.
