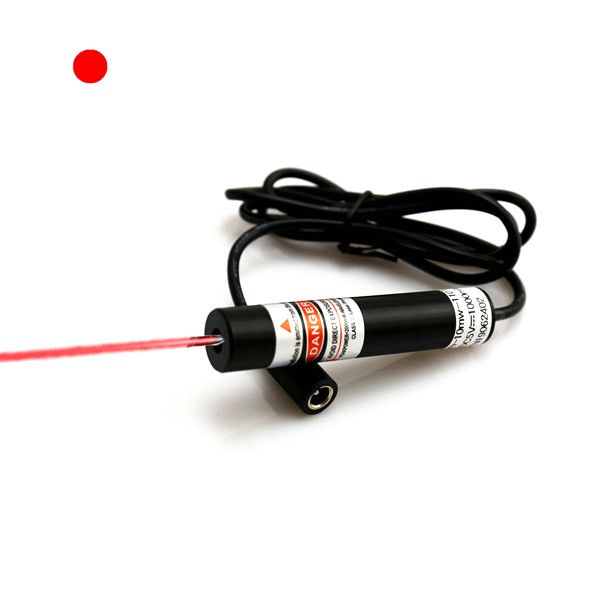

Not able to rely on any simple manual dot projecting work, not limited by long distance, high height and other complex working environments etc, a lot of professionals and engineers would prefer to operate a highly intense beam emitted tool of a 650nm red dot laser module. It applies an import 650nm red laser diode and a qualified optic lens inside a durable metal housing tube, connected with an external electric power source. Cooperated with basic heat dissipation design inside a different dimension tube, only if a correct output power made red dot laser alignment makes proper installation or integration with industrial machinery, it projects highly visible and bright red laser light source, and generates ultra clear and precise red dot indication for all raw material processing works conveniently.
Usually 650nm red dot laser module applies an AC/DC adapter as its electric power source, which gets no need to spend extra time on battery change. Employed by an import 650nm red laser diode within 5mW to 100mW and high power range up to 150mW to 500mW, cooperated with a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, it gets good heat dissipation and ultra stable red laser light and red dot projection as long as 10 hours per day. Either red dot is pointing onto metal or non metal workpiece surface, highly visible red dot alignment is unaffected by ambient light interference.
Being made with a qualified glass coated lens and adjustable focus optic lens in front of beam aperture, 650nm red dot laser module enables high transmittance and high energy density red laser light emission at several miles far away. When it gets special use of adjustable focus optic lens, after its immediate red laser light concentration, it is able to achieve increasing accuracy and brightness red dot projection at a greater distance. Usually red laser dot after its beam focus adjustment can reach as small as 1mm within 5 meters. It also enables high positioning accuracy, error less than 0.1mm. For the most important of all, after integration with APC, ACC intelligent feedback electric driving circuit board, usually red dot laser alignment is resistant to machine tool vibration and electromagnetic interference, assuring continuous operation without light interruption.
Usually 650nm red dot laser module is adapted for machining workshop environments ranging from 10℃ to 60℃, which is temperature and dust resistant, adaptable to humid/dusty conditions. When it adopts ultra compact size tube design of 16mm and 26mm for different output power range, with the assistance of a laser alignment mounting bracket, it can be directly integrated into various machine tools and automated actuators etc. Within the lowest power consumption, low maintenance cost, and no need for frequent replacement or adjustment, red alignment laser gets wide applications for multiple precise machinery processing works.
Applications in industrial machining:
Cutting Positioning: Pre-marking the machining path of milling machines, lathes, and cutting machines, accurately guiding the tool path landing point.
Assembly Calibration: Alignment of parts and mold closing reference marking, improving assembly coaxiality and fitting accuracy.
Welding Aiming: Pre-positioning of weld seams in laser/arc welding, assisting the welding torch in accurately aligning the joint.
Production Line Alignment: Workpiece positioning and conveyor track reference line marking in automated production lines, ensuring precise connection of workstations.
Machine Tool Calibration: Reference point calibration during equipment maintenance, assisting in machine tool accuracy debugging and error correction.
