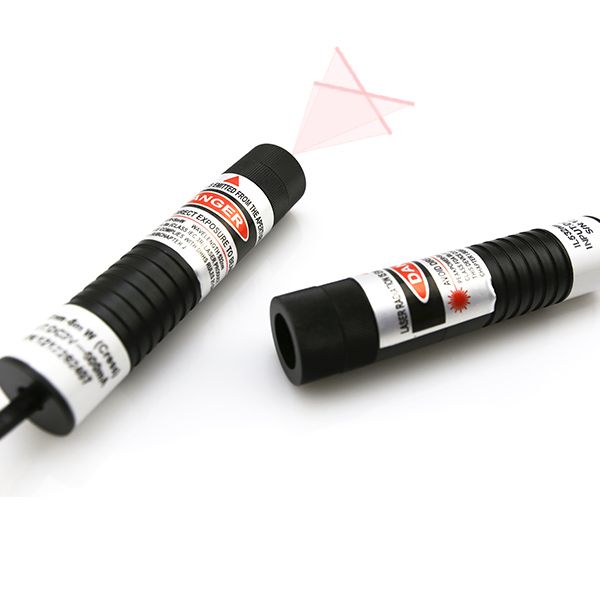

When a new cross line measuring tool is designed with an import 980nm infrared laser diode and a high quality optic lens inside a highly durable metal housing tube, it is manufactured into a professional cross line measuring tool of a 980nm infrared crosshair laser module. It gets basic design of thermal emitting system and constant electric power source supply. It keeps work with highly stable infrared laser light source generation, and converts into ultra clear and fine two perpendicular infrared lines generation in distance. It generates highly straight and fine infrared vertical and horizontal lines onto different working surfaces. This infrared cross laser alignment is a qualified IR laser that converts a point light source into a cross hair laser beam through optical processing, finding wide applications in multiple fields.
Usually 980nm infrared cross line laser module applies a qualified glass coated lens with 10, 15 and 110 degree fan angles. In order to assure its long term lasted and highly clear IR cross line projection, it also gets special equipment with a glass window and adjustable focus optic lens. When it generates highly powerful infrared laser light source at several miles far away, it can easily converts into increasing accuracy and brightness IR cross line generation in distance. When it projects high laser line precision, such as less than 30″ accuracy at a distance of 5m, this infrared cross laser alignment is meeting various high-precision positioning and alignment requirements.
In practical precise cross line generation in those of night version fields, in order to assure of its long term lasted and highly stable cross line generation, 980nm infrared crosshair laser module is equipped with a constant current drive circuit board and excellent heat dissipation design. It can maintain stable laser output power during long term continuous operation, reducing laser line breakage, attenuation, or blurring. This infrared cross laser should only be selected with appropriate output power and optic lens fan angle according to different application scenarios and needs. Within wide range temperature range, generally -10℃ to 70℃, and storage temperature range -30℃ to 80℃, 980nm infrared cross laser alignment is adaptable to various working environments.
General applications in multiple fields:
Industrial Manufacturing: 980nm infrared crosshair laser module can be used for alignment in textile printing and dyeing, auxiliary marking in fabric cutting machines, marking and positioning in automobile production, and as an auxiliary light source for extrusion measurement.
Medical Field: Used as a debugging tool for two-dimensional alignment of internal optical components during medical equipment assembly, and also for positioning treatment areas in laser therapy equipment.
Scientific Research: 980nm infrared alignment laser is suitable for optical system debugging, providing two-dimensional calibration benchmarks for precision component analyzers in laboratories.
