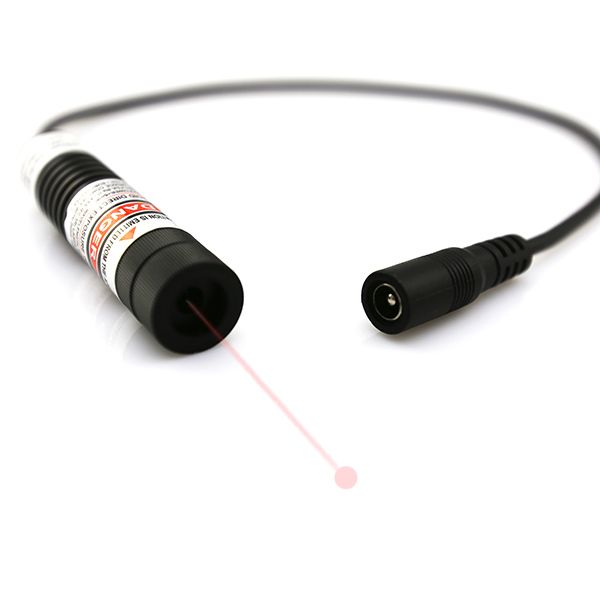

In various type of night version precise dot positioning work fields, owing to the use of a near infrared laser diode and a qualified glass coated lens inside a highly durable anodized aluminum alloy housing tube design, it is manufactured into a professional dot measuring tool, such as a 980nm infrared laser diode module. The wavelength of 980nm belongs to the near infrared band, invisible to the narked eyes and can only be detected by infrared equipment. Cooperated with night version device, such as infrared laser camera, black and white camera or CCD camera, this infrared dot laser alignment can be operated without self exposure, and does not interfere with signals in visible light experiments/equipment. It is suitable for security and outdoor fields conveniently.
Compared with short wavelength infrared laser light, the genuine use of a 980nm infrared laser diode module gets superior nice IR laser light penetration under mist and dust, maintaining a clear infrared reference dot projection in complex environments, such as industrial workshops and outdoors, ensuring positioning stability. Usually it applies an import 980nm infrared laser diode within 5mW to 500mW and high power up to 600mW to 1000mW as its beam emitting source. Together with its low laser beam divergence of less than 0.3mrad, the projected infrared alignment laser dot diameter can be controlled within 0.1 to 1mm within close distance of 1 to 10 meters. In addition, even though dot measuring work is processing at more than 10 meters, it can still maintain focused red dot projection at long distances, meeting the high-precision requirements of precision alignment and scientific research calibration.
When 980nm infrared laser diode module applies a qualified glass coated lens and adjustable focus optic lens in front of laser beam aperture, besides its operation of long term lasted and high energy density infrared laser light emission at several miles far away, it also enables efficient conversion of increasing accuracy and brightness infrared dot projection at longer distance. Within wide range operating temperature of -20°C to 60°C, mechanical moving or shocking, or humidity etc, this infrared dot laser alignment always maintains long term IR dot projection in various industrial and outdoor environments.
General applications of 980nm infrared laser diode module:
Industrial:
Precision Alignment: Used in machine tool processing and automated production lines, it serves as a positioning reference point for mechanical components and conveyor belts, assisting in the precise docking of equipment (such as bearing installation and component assembly).
Sensor Calibration: Calibrates the detection origin of infrared ranging sensors and displacement sensors to ensure the accuracy of measurement data, suitable for industrial inspection and robot positioning scenarios.
Medical:
Laser Therapy Targeting: 980nm infrared dot laser alignment is used in dental laser treatments, such as periodontal treatment, and dermatological phototherapy equipment, it serves as a target marker to guide the treatment beam precisely to the lesion (such as caries or dermatophyte infections).
Medical Equipment Calibration: Calibrates the lens center of endoscopes and surgical navigation systems to ensure the alignment of surgical instruments with the image, improving the accuracy of minimally invasive surgery.
Security and Surveillance:
Monitoring Range Calibration: Integrated into infrared surveillance cameras, this system uses infrared alignment laser dots to mark key areas of the surveillance footage (such as entrances and exits, and valuables storage areas), assisting in adjusting the camera’s angle and focus.
Perimeter Alarm: In conjunction with infrared beam detectors, this system marks the critical sensing points of alarm devices, preventing missed or false alarms caused by device misalignment and enhancing perimeter security reliability.
Scientific Research:
Optical Path Marking: In optical experiments (such as infrared spectroscopy and laser communication research), this infrared laser diode module marks optical path turning points and detector receiving centers, assisting in establishing precise experimental optical paths.
Sample Positioning: In conjunction with microscopes, atomic force microscopes, and other equipment, this system marks detection targets for biological samples (such as cells) and material samples (such as semiconductor wafers), ensuring repeatable scientific observations.
