What is an efficient job for engineers or professionals to make ultra clear and precise dot indication for those of industrial processing works? Even though it is difficult to reach with simple manual dot projecting tool or a simple blue laser pointer, it should be a better solution to apply a high energy density beam emitted tool, such as a 445nm blue laser diode module. It keeps work with intense and powerful blue laser light emission directly from an import laser diode. Usually it is required to make long period and long distance lasted blue dot alignment. Based on its correct use of output power and proper integration with industrial device or equipment, this direct diode emission made blue dot laser alignment tool still enables ultra precise and bright blue dot indication onto multiple processing materials.
Comparing with other invisible IR laser such as a 1064nm IR laser, the genuine use of a 445nm wavelength has got even shorter wavelength. After powerful and intense blue laser light emission focusing, it can be converted into a ultra clear and precise dot alignment onto different working surfaces. This 445nm blue laser diode module applies an import 445nm blue laser diode within 50mW to 100mW and high power up to 150mW to 200mW, which is configured with a metal heat sink cooling system inside its durable anodized aluminum alloy housing tube. Owing to its operation of intense blue laser light emission directly from a laser diode, not as bright as a 473nm blue DPSS laser system, this blue dot laser alignment still enables superior high beam stability and ultra long term lasted dot alignment.
In order to make highly clear and bright dot alignment for those of industrial processing works, this 445nm blue laser diode module applies a qualified glass coated lens in front of laser beam aperture. It gets constant electric power source from a 5V, 9V 1000mA DC power supply, the projected blue laser light gets high laser reflectivity for materials, such as copper, aluminum, and glass, the blue laser’s absorption rate is increased by 3-5 times, reducing energy waste and improving processing efficiency. Whenever blue dot laser alignment tool gets larger space leaving for tube cooling down, it enables long term blue dot projection within 8 to 10 hours per day, and ultra high level of laser beam stability of up to 85% in continuous laser pointing works.
Applications in industrial processing fields:
Precision Marking: 445nm blue laser diode module is marking on metals, such as stainless steel and aluminum alloys, glass, and ceramics creates high-contrast, fine-detail (micrometer-level) marks. Suitable for serial numbers and QR codes on electronic components and medical devices.
Micromachining: Micro-cutting, drilling, or etching of semiconductor chips and flexible printed circuit boards with processing accuracies of less than 10 microns, meeting the manufacturing requirements of microelectronic components.
Special Material Processing: blue alignment laser is used for highly reflective metals such as copper and gold, which are difficult to process with traditional infrared lasers, blue lasers, due to their higher absorption rate, enable more efficient welding and cladding, with a smaller heat-affected zone.
Month: September 2025
High Precision Positioning Tool of 980nm Infrared Laser Diode Module
In various type of night version precise dot positioning work fields, owing to the use of a near infrared laser diode and a qualified glass coated lens inside a highly durable anodized aluminum alloy housing tube design, it is manufactured into a professional dot measuring tool, such as a 980nm infrared laser diode module. The wavelength of 980nm belongs to the near infrared band, invisible to the narked eyes and can only be detected by infrared equipment. Cooperated with night version device, such as infrared laser camera, black and white camera or CCD camera, this infrared dot laser alignment can be operated without self exposure, and does not interfere with signals in visible light experiments/equipment. It is suitable for security and outdoor fields conveniently.
Compared with short wavelength infrared laser light, the genuine use of a 980nm infrared laser diode module gets superior nice IR laser light penetration under mist and dust, maintaining a clear infrared reference dot projection in complex environments, such as industrial workshops and outdoors, ensuring positioning stability. Usually it applies an import 980nm infrared laser diode within 5mW to 500mW and high power up to 600mW to 1000mW as its beam emitting source. Together with its low laser beam divergence of less than 0.3mrad, the projected infrared alignment laser dot diameter can be controlled within 0.1 to 1mm within close distance of 1 to 10 meters. In addition, even though dot measuring work is processing at more than 10 meters, it can still maintain focused red dot projection at long distances, meeting the high-precision requirements of precision alignment and scientific research calibration.
When 980nm infrared laser diode module applies a qualified glass coated lens and adjustable focus optic lens in front of laser beam aperture, besides its operation of long term lasted and high energy density infrared laser light emission at several miles far away, it also enables efficient conversion of increasing accuracy and brightness infrared dot projection at longer distance. Within wide range operating temperature of -20°C to 60°C, mechanical moving or shocking, or humidity etc, this infrared dot laser alignment always maintains long term IR dot projection in various industrial and outdoor environments.
General applications of 980nm infrared laser diode module:
Industrial:
Precision Alignment: Used in machine tool processing and automated production lines, it serves as a positioning reference point for mechanical components and conveyor belts, assisting in the precise docking of equipment (such as bearing installation and component assembly).
Sensor Calibration: Calibrates the detection origin of infrared ranging sensors and displacement sensors to ensure the accuracy of measurement data, suitable for industrial inspection and robot positioning scenarios.
Medical:
Laser Therapy Targeting: 980nm infrared dot laser alignment is used in dental laser treatments, such as periodontal treatment, and dermatological phototherapy equipment, it serves as a target marker to guide the treatment beam precisely to the lesion (such as caries or dermatophyte infections).
Medical Equipment Calibration: Calibrates the lens center of endoscopes and surgical navigation systems to ensure the alignment of surgical instruments with the image, improving the accuracy of minimally invasive surgery.
Security and Surveillance:
Monitoring Range Calibration: Integrated into infrared surveillance cameras, this system uses infrared alignment laser dots to mark key areas of the surveillance footage (such as entrances and exits, and valuables storage areas), assisting in adjusting the camera’s angle and focus.
Perimeter Alarm: In conjunction with infrared beam detectors, this system marks the critical sensing points of alarm devices, preventing missed or false alarms caused by device misalignment and enhancing perimeter security reliability.
Scientific Research:
Optical Path Marking: In optical experiments (such as infrared spectroscopy and laser communication research), this infrared laser diode module marks optical path turning points and detector receiving centers, assisting in establishing precise experimental optical paths.
Sample Positioning: In conjunction with microscopes, atomic force microscopes, and other equipment, this system marks detection targets for biological samples (such as cells) and material samples (such as semiconductor wafers), ensuring repeatable scientific observations.
808nm Infrared Line Laser Module Applied For Precise Line Cutting Works
Cooperated with advanced 808nm infrared laser diode tech and a qualified glass coated lens inside a highly durable anodized aluminum alloy housing tube, it is created into a professional line measuring tool of a 808nm infrared line laser module. It always gets good environmental interference and high level of laser beam stability. In practical precise line positioning work, after its correct use of output power and optic lens fan angle, and proper installation or integration with other night version device or equipment, this infrared laser line generator is unaffected by strong industrial light (such as reflections from cutting sparks and workshop lighting), smoke, or dust. Even in dusty metal cutting environments, the infrared laser line remains clearly visible, eliminating calibration errors caused by interference from visible light positioning.
The genuine use of a qualified glass coated lens inside a 808nm infrared line laser module enables freely selected fan angles within 10 to 110 degree. In various night version precise line positioning works, owing to its special use of a glass window in front of beam aperture, even though it is pointing under moisture, dust, rain, water or fog etc, it still keeps work with high energy density and high transmittance infrared laser light source emission, and efficient conversion of highly fine and straight infrared reference line projection at long extending distance. Usually infrared laser line alignment keeps high marking accuracy, suitable for high precision line cutting needs.
Every time 808nm infrared line laser module gets easy connects with 5V, 9V,12V 1000mA AC/DC adapter, not spending extra time on battery change, it is maintaining low output line straightness error of less than 0.1mm per meter, meeting the “±0.05mm positioning accuracy” requirement for industrial cutting, directly reducing cutting size deviations. Owing to its high penetration infrared laser light for thick materials, this infrared laser line generator has a certain degree of penetration through thin metal plates and non-metallic materials, ensuring stable IR line projection of the reference line on the material surface, eliminating the need for frequent surface cleaning for calibration.
In the practical precise line cutting works, Gaussian beam 808nm infrared line laser module maintains long serving lifetime and low maintenance cost, suitable for continuous industrial operation. Besides the adoption of an import semiconductor IR laser diode, being made with APC, ACC driving circuit board, it boasts a service life of over 10,000 hours and low operating power consumption, meeting the 24/7 continuous operation requirements of industrial cutting equipment and reducing downtime and maintenance due to module failures.
General applications in industrial laser cutting works:
Metal cutting (such as steel and stainless steel): Before the infrared laser line generator or plasma cutting machine operates, an infrared linear line is projected that perfectly aligns with the cutting path, helping the operator calibrate the material position and avoid cutting deviations.
Non-metal cutting (such as acrylic, wood, and fabric): For flexible or easily deformable materials, infrared alignment laser lines are used to pre-mark the cutting boundaries, ensuring uniform cut dimensions for each piece during batch cutting and reducing scrap.
Thick material layer cutting: When cutting materials thicker than 10mm, the infrared linear line clearly marks the “layer cutting path,” assisting the equipment in controlling the cutting depth and avoiding missed or over cutting.
What is The Special Use of 808nm Infrared Laser Diode Module in Medical Field
What would you like to do to make ultra clear and precise enough dot indication for all night version illumination work field? In those of medical treatment or surgery field, on condition that manual dot projecting tool or visible laser dot alignment tool cannot reach, it would be a much better solution to apply a longer wavelength made device, such as a 808nm infrared laser diode module. It applies an import 808nm infrared laser diode and a qualified glass coated lens inside a durable anodized aluminum alloy housing tube. Whenever it gets superior nice thermal emitting system and constant electric power source supply, either used for close or long distance, being used as an accessory part of night version medical treatment device or equipment, this night version specialized device of a infrared dot laser alignment ensures ultra clear, precise and bright infrared reference dot projection constantly.
When 808nm wavelength is applied for the creation of an infrared laser diode module, it just emits invisible infrared laser beam and IR reference dot from beam aperture. 808nm infrared laser light is invisible and difficult to detect, effectively ensuring the concealment of military operations. Being made with an import 808nm infrared laser diode with different output power of 5mW to 500mW and high power up to 600mW to 1000mW, this infrared dot laser alignment tool is also equipped with a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, it enables superior nice heat dissipation, ultra long term lasted and highly stable infrared reference dot projection in long term continuous use.
After quite easy connects with an AC/DC adapter, accepting wide range electric current of 100V to 240V, the genuine use of a 808nm infrared laser diode module can generate quite powerful and intense infrared laser light source at long extending distance. In addition, IR laser light emission is minimally affected by ambient light and enemy interference, ensuring stable operation in complex battlefield environments. When it is penetrating into a certain degree of smoke, dust, and mist, this infrared dot laser alignment is still ensuring effectiveness in adverse weather conditions.
Being made with a qualified glass coated lens and adjustable focus optic lens design, together with its low laser beam divergence, the real use of a 808nm infrared laser diode module still maintains high stability, long serving lifetime, making it suitable for the harsh conditions of military applications. Every time it generates powerful and intense infrared laser light source at several miles far away, after its easy screw of laser beam aperture part, this infrared dot laser alignment enables efficient conversion of increasing accuracy and brightness infrared dot generation at longer distance conveniently.
General use in medical treatment fields:
Night Vision Surveillance and Reconnaissance: 808nm infrared laser diode module is serving as an infrared laser supplemental light source, in conjunction with infrared cameras, they provide clear night vision in harsh environments such as complete darkness, fog, and smog. It is used for monitoring military bases and border outposts, as well as for observing the environment for scouts operating at night.
Target Designation and Ranging: Serving as a light source for laser rangefinders, infrared dot projection determines target distance by measuring the round-trip time of infrared light. They can also be used for target designation, providing a precise aiming point for weapon systems.
Infrared Communication: Utilizing 808nm infrared alignment laser light for short-range military communications, they offer a degree of concealment and anti-interference capabilities.
Obstacle Detection: Similar to distance measurement in industrial inspection, 808nm infrared laser light can be used to detect obstacles ahead, helping military equipment such as tanks and armored vehicles avoid them at night or in low-visibility environments.
Border Surveillance: Used for day and night monitoring of borders to prevent illegal crossings.
Military Base Security: Ensures the security of military bases by monitoring and identifying personnel and vehicles entering the base.
Night Operations: 808nm infrared dot laser alignment provides nighttime observation, targeting, and communication support for combat personnel and equipment, such as infantry night raids and tank night operations.
Weapon Guidance Systems: Helps missiles and other weapons accurately lock onto and track targets.
General Use of 635nm Red Laser Diode Module in Medical Assistance
Whatever kind of working surface users are trying to make ultra clear and precise dot indication, in those of medical treatment and therapy fields, it is a good job for operators to select a high purity and high brightness device, such as a 635nm red laser module. Under normal lighting conditions in medical environments, the red laser dot is clearly visible, facilitating operation and positioning by medical staff. The 635nm wavelength matches the frequency of healthy human cells and is easily absorbed by human tissue, producing a positive biostimulatory effect with minimal damage. Whenever red dot laser alignment gets correct use of output power and operating voltage electric power source, it enables easy reaching, highly precise and clear red dot indication for all medical treatment works effectively.
Inside the durable anodized aluminum alloy housing tube, 635nm red laser diode module adopts advanced 635nm red laser diode and driving circuit board. It applies an import 635nm red laser diode within 5mW to 100mW and high power up to 150mW to 500mW, which is equipped with a metal heat sink cooling system inside. It gets superior nice heat dissipation and ultra nice laser beam stability. Under operation of different operating conditions, 635nm red dot laser alignment maintains consistent output power and red dot shape. It is less susceptible to spot drift or brightness decay during continuous operation. This red dot laser alignment is allowing users to select the appropriate power level based on the specific medical application requirements, meeting a wide range of scenarios, from low-intensity positioning assistance to high-intensity treatment.
On consideration of long term and easy dot indication, on the basis of real output power, 635nm red laser diode module is designed and manufactured with proper tube diameter of 16mm, 18.9mm and 26mm, which can be easily integrated into various medical devices without taking up too much space, contributing to the miniaturization and portability of medical equipment. This red dot laser alignment provides excellent thermal conductivity, effectively dissipating heat generated by the laser diode and ensuring module stability during extended operation. Every time this low beam divergence red laser gets proper installation or integration to correct position, it just ensures excellent focus and high positioning accuracy, meeting the precise positioning requirements of the medical field.
Applications in medical therapy assistance:
Wound Repair: 635nm red laser diode module can penetrate the skin 1-2mm deep, acting on mitochondria, increasing cellular ATP synthesis efficiency, stimulating fibroblast proliferation and collagen reorganization. It can be used to repair wounds such as postoperative incisions, diabetic ulcers, and burns, accelerating healing and reducing scarring.
Acupuncture Targeting: This wavelength of red alignment laser light has a similar frequency to healthy cells and is easily absorbed by the body. It can help doctors accurately locate acupuncture points, improving the accuracy of acupuncture treatments.
Skin Treatment: In the field of skin beauty, it can be used to treat inflammatory skin conditions such as acne. 635nm red light can destroy Propionibacterium acnes, reducing acne formation, improving skin sensitivity, and repairing damaged skin barriers.
Medical Device Positioning: small size red dot laser module can be integrated into medical devices such as MRI scanners, CT scanners, X-ray fluoroscopy, and C-arm X-ray machines for accurate physical positioning and surgical location indication.
textile processing work with 650nm red laser line generator
when users are looking for an easy operating and highly precise line indication for those of garment cloths processing works, no matter it is used for close or long distance, none of manual or mechanical line alignment tool can be comparable with advanced laser diode tech applied tool of a 650nm red laser line generator. it keeps work with intense and powerful red laser beam projection directly from an import 650nm red laser diode. usually it gets constant electric power source supply and advanced use of both of import laser diode and qualified glass coated lens. every time this ultra compact structure made 650nm red laser module gets proper installation or integration with textile processing equipment, it enables good direction, high precision and high fineness red line indication for multiple working occasions conveniently.
basically 650nm red laser line generator applies an external electric power source, thus there is no need to spend extra time on alkaline battery power source. employed by an import 650nm red laser diode within different output power range of 5mw to 100mw and high power up to 150mw to 500mw, it adopts different operating voltage of 5v, 9v, 12v 1000ma dc power supply. besides its projection of highly intense and visible red laser beam emission at long extending distance, this accessory part of a red line laser module also enables ultra clear, fine and highly straight red line indication as long as 25 meters and even higher lighting occasions as well.
cooperated with a qualified glass coated lens within 10 to 110 degree fan angles and special use of adjustable focus optic lens design, when garment processing work is requiring ultra high level of accuracy, it just makes a good job as expected. when it projects high transmittance and high energy density red laser beam at several miles far away, after quite easy screw of laser beam aperture part, this red line laser module enables freely adjusted red line thickness and fulfills high level of accuracy and easily capture laser line generation onto different garment cloths. for the most important of all, red laser light is getting high contrast on garment cloths, and also leaves no track, thus the operation of a red laser can greatly protect cloth with the best working condition and assure high efficiency garment processing works greatly.
in practical garment cloths processing workshops, owing to the use of a durable anodized aluminum alloy housing tube, the genuine use of a 650nm red laser line generator can bear different working occasions, including wide range operating temperature, different humidity, mechanical moving or calibration as well. it can be properly installed or integrated with textile garment processing devices, and making sure of no barrier and noncontact line indication. owing to its long term lasted red line indication of more than 8,000 hours, this industrial stabilized red alignment laser is especially applicable for garment production line works perfectly.
How Can 650nm Red Laser Diode Module Be Applied For Multiple Industrial Fields?
Whenever 650nm red laser diode tech is applied for the creation of a real dot measuring tool, not simply made into a red laser pointer, it is manufactured into a much more practically used device, such as a 650nm red laser diode module. The wavelength of 650nm belongs to the red wavelength band. In daylight, indoors, and in low light environments, the human eye is more sensitive to it than infrared lasers. Any time it gets constant electric power source supply and proper integration with industrial device or equipment, 650nm red dot laser is projecting highly clear and easily identified red reference dot indication at various work distances, with no additional receiving equipment.
In practical precise dot positioning works, red laser diode module applies an import 650nm red laser diode as its beam emitting source. It gets long developing history and matured laser diode tech, owing to its long developing history, this direct diode emission made laser device has just got quite low production cost and highly stable red laser beam and red dot projection from beam aperture. In addition, comparing with higher power green or blue laser, the driving current is much lower, thus it is resulting in a lower overall module cost and suitable for high-volume commercial use. When 650nm red dot laser alignment tool applies an inner metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, it is not only achieving superior nice thermal emitting, but also assuring ultra stable and clear red dot projection within long lasting time of more than 8 hours per day.
Being made with a durable anodized aluminum alloy housing tube, this 650nm red laser diode module is operated within wide range temperature of -10°C to 60°C), resulting in minimal light spot drift over long-term use and a lifespan of up to 10,000-30,000 hours. It also bears different humidity and mechanical moving, shaking in continuous use. Based on the use of a qualified glass coated lens and glass window in front of beam aperture, this diode emission made 650nm red dot laser enables high energy density and high transmittance red laser light emission, and converts into increasing brightness and accuracy red dot indication at even longer distance of 25 meters and multiple lighting occasions as well.
Based on its ultra compact size red reference dot projection with 1 to 5mm diameter at a distance of 1 meters, this 650nm red laser diode module also enables high level of dot positioning accuracy up to ±0.1mm. This meets the needs of non-ultra-high-precision applications such as industrial alignment and instructional guidance, but is not suitable for micron-level precision machining. On condition that it is selected with high power range up to 150mW to 500mW, unless its operation of sunlight, it also makes sure of ultra clear, precise and bright dot indication under high lighting occasions as expected. It is focusing on positioning, indication, and aiming scenarios. Its performance advantages lie in high visibility, low power consumption, and manageable costs, which is suitable for various devices with medium-precision requirements and requiring intuitive visual guidance.
Applications:
Industrial positioning: 650nm red laser diode module is used as a positioning reference for laser marking/cutting machines, material alignment in automated assembly lines, and target indication for machine tool processing.
Consumer electronics: Laser pointers (for teaching/demonstration), image calibration for projectors/laser TVs, and path planning marking for robot vacuums.
Security and targeting: Focus assist for surveillance cameras, aiming indication for toy guns/simulated shooting equipment, and area boundary marking for access control systems.
Medical assistance: Low-power red alignment laser can be used for acupuncture positioning and target guidance for skin treatments (must meet medical-grade power standards).
Mechanical Processing Works with DC Power 520nm Green Laser Diode Module
What is an easy job for engineers or professionals to make clear and precise enough dot indication? It might be processing at different work distances and multiple lighting occasions, as a results, a lot of users would prefer to operate a highly intense beam emitted tool of a 520nm green laser diode module. It keeps work with intense and powerful forest green laser beam directly from an import 520nm green laser diode. Usually it applies a qualified optic lens and thermal emitting system inside a highly durable housing tube. Not limited by professional skills, operating distance or other complex working environments etc, this direct diode emission made 520nm green dot laser ensures easy reaching, noncontact and high precision green reference dot projection onto various working surfaces conveniently.
In practical machinery processing works, this 520nm green laser diode module is always required to make long term lasted dot positioning works. The genuine use of an import laser diode enables at least 40% laser beam stability, and the output power fluctuation is less than ±5% (operating temperature -10°C to 60°C), preventing beam spot dimming or deformation due to power attenuation and ensuring consistent positioning marks during long-term continuous processing. Besides the use of a metal heat sink cooling system, this green dot laser alignment also gets special use of APC, ACC intelligent feedback control electric driving circuit design. Whatever output power it is selected, it still maintains ultra long time lasted green dot projection and long serving lifetime for all precise dot positioning works.
Being made with durable anodized aluminum alloy housing tube design, this 520nm green laser diode module can be adapted to different workshop environments. It is designed to withstand vibration and dust, the module can withstand machine tool vibration and dust pollution during operation, reducing module downtime. In practical precise dot measuring work, only after correct use of output power and operating voltage electric power source, this ultra compact structure made 520nm green dot laser enables quite easy installation or integration, quick reaching and good direction green reference dot projection onto any vertical or horizontal surface immediately.
In machining processing work, 520nm green laser diode module is primarily used to provide precise visual positioning references, such as “starting point marking” for cutting metal/non-metallic sheet metal, “workpiece alignment reference points” for milling, “hole position pre-marking” before drilling, and “multi-process coaxial calibration marking” for large part machining. It gets reduced relying on manual labor force input, and no limitation caused by long distance, high height and other complex working environments etc. When green alignment laser is operating with high power up to 50mW, it is a necessity to take active laser safety measures and wear proper 520nm wavelength preventing laser safety glasses so as to achieve easy, free and secured dot measurement constantly.
Noncontact Aligned Experience of Industrial Field Applied 520nm Green Laser Diode Module
Whenever dot generation work is processing at different work distances and multiple lighting occasions etc, not able to reach with a simple laser pointer or other manual dot projecting tool, it would be a much more efficient job to apply a direct diode emission tool of a 520nm green laser diode module. It generates intense and powerful forest green laser beam directly from an inner laser diode and applies a qualified optic lens inside its durable metal housing tube. Only if it gets constant electric power source supply and proper mounting onto industrial device or equipment, this green dot laser alignment tool assures good direction, noncontact and no mistake green dot indication for all industrial precise dot measuring works constantly.
Usually 520nm green laser diode module applies an import 520nm green laser diode within 5mW to 50mW and high power range of 150mW to 200mW as its beam emitting source. It gets a bit shorter wavelength than the middle wavelength of 532nm, however, it still maintains sensitive color and easy absorbing green laser light source emission, and forms into highly intense and powerful green laser light source, ultra clear and precise green reference dot projection at different work distances and multiple ambient lighting occasions as well. Typically 520nm green dot laser alignment adopts quite small size tube diameter design of 16mm, 18.9mm or 26mm for different output power range, thus it can be easily integrated into various industrial equipment. It saves space and facilitates installation and maintenance. For example, it can be integrated into small handheld laser measuring instruments for convenient on-site operation.
According to the use of a durable anodized aluminum alloy housing tube and copper laser diode, this direct diode emission made 520nm green laser diode module always offers excellent heat dissipation performance. This effectively dissipates heat generated during operation, ensuring the stability of the laser module during continuous operation and extending its service life. In process of long time lasted green dot projection within 8 to 10 hours per day, this industrial stabilized 520nm green dot laser alignment tool gets superior high laser beam stability and ultra clear green dot projection for multiple precise machinery processing works.
General applications in industrial fields:
High Visibility and Precise Positioning: 520nm green light falls within the wavelength range that the human eye is most sensitive to. Even in strong sunlight in industrial environments, it maintains extremely high visibility, clearly indicating the target position and achieving high-precision positioning. It is widely used in scenarios such as aligning precision parts in machining and marking benchmarks in construction.
Non-contact measurement and inspection: 520nm green laser diode module can be used in industrial robot sensing, visual inspection, and other fields. By projecting a spot light spot, it provides a precise reference point for the vision system, enabling non-contact measurement and inspection of an object’s size, shape, and position, while avoiding damage to the object being measured.
Harsh Environment Adaptability: Most 520nm green dot projecting alignment laser features a wide operating temperature range and vibration resistance, enabling stable operation in complex environments such as high and low temperatures, and vibrations found in industrial workshops. This ensures long-term stable operation, such as when positioning high-speed moving parts on automated production lines.

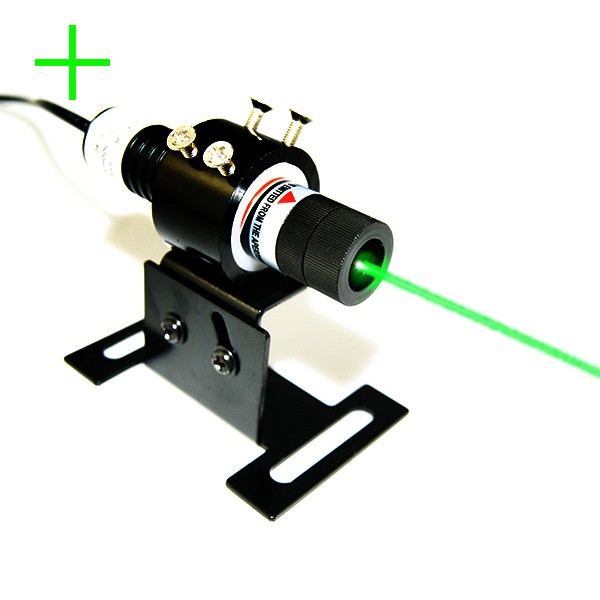

High Visual Recognition 532nm Green Cross Laser Alignment for Industrial Fields
Whenever 532nm green DPSS laser etch is applied for a green cross laser alignment, it is equipped with a qualified glass coated lens and thermal emitting system inside its durable metal housing tube. The 532nm green laser light offers excellent visibility in all environments, ensuring clear viewing of the green cross lines even in brightly lit workshops or outdoors, facilitating positioning and alignment. In those of industrial and high tech precise cross line measuring work fields, only if this 532nm green laser module gets constant electric power source supply and proper installation onto industrial machine or equipment, it enables easy reaching, good direction, noncontact two perpendicular green lines generation at long extending distance and multiple ambient lighting occasions as well.
Basically 532nm green cross laser alignment applies a qualified glass coated lens and adjustable focus optic lens. It enables low laser beam divergence of less than 1mrad and special TEM00 beam mode, as a result, either it is pointing at close or long distance, it enables ultra high fineness and high brightness two perpendicular green lines at various work distances. It produces precise vertical and horizontal crosshairs with high straightness and a narrow beam divergence, achieving micron-level positioning accuracy to meet the demands of precision machining and measurement. Available with wide range output power of 5mW to 100mW and high power up to 150mW to 200mW, this qualified optic lens made green cross line laser module enables ultra clear and precise green cross line source generation for multiple working occasions, including close distance, long distance, inner room and high lighting occasions as well.
For the most important of all, being made with APC, ACC driving circuit and basic heat dissipation design, 532nm green cross laser alignment assures a long lifespan and high stability green cross line projection in continuous use. It maintains stable light output over extended periods of continuous operation, achieving power stability of < 1% (rms over 4 hours). whenever it is selected with correct output power and operating voltage DC power supply, it is able to produce a uniform, bright green lines with accurate 90 degrees, improving laser beam accuracy and transmission efficiency.
General use of green cross laser alignment in industrial fields:
Precision Machining: highly precise green cross line laser source can be used in stone bridge cutting machines, sheet metal shearing and pressing machines, etc., providing precise positioning references for cutting, stamping, and other processes, ensuring dimensional accuracy.
Electronics Manufacturing: In electronic SMT patch processing, it is used for precise component positioning, improving patch accuracy and efficiency. They can also be used for marking and positioning on printed circuit boards, helping to determine soldering positions and component mounting locations on the circuit board.
Textile and Apparel Industry: green alignment laser is used for alignment of cutting grids and strips on cutting tables, positioning of point light sources for buttoning garments, and positioning of bag opening machines, ensuring precision and quality in garment processing and improving production efficiency.
Printing Industry: On printing presses, it can be used for paper positioning and registration, ensuring the accuracy and consistency of printed patterns and reducing scrap.
