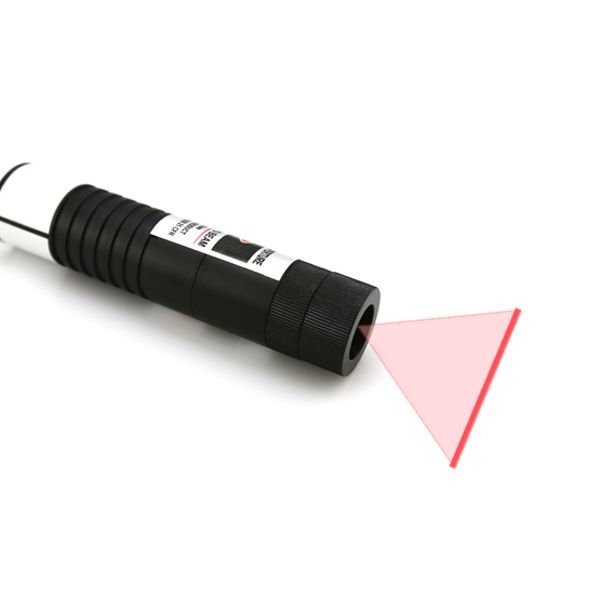

What is an efficient job to make ultra clear and precise enough line indication at various work distances? It might be far more enough to reach with prior line drawing or printing work at all. On consideration of high level of accuracy and high brightness line projection onto multiple working surfaces, laser tech engineers have just designed and manufactured a professional line measuring tool of a 650nm red line laser module within uniform beam distribution. Being made with constant electric power source and internal thermal emitting system inside different dimension metal housing tube, the usual use of a laser line generator has just achieved ultra stable, long time lasting and highly precise red line indication onto multiple raw material surfaces conveniently.
The special use of a uniform beam 650nm red line laser module is applying a qualified separate crystal lens within 10 to 93 degrees fan angles. The energy distribution of the non Gaussian beam is more uniform, avoiding the problem of “bright center and dark edge” of traditional Gaussian light. The red laser light brightness consistency of the projected straight red laser line is good, and the clarity of the marking line is not effected by the distance, high height and other complex working environments etc. Even though laser line generator is pointing at quite long work distance, it still maintains ultra high brightness and high fineness red line indication as expected, which is working for long distance or large scale calibration fields.
In order to improve line aligning accuracy at various working distances, this non Gaussian beam 650nm red line laser module gets special use of adjustable focus optic lens design. Besides its proper selection of both of output power and optic lens fan angle, it also enables quite easy screw of beam aperture part, thus it gets highly concentrated red laser light source emission, and converts into an increasing accuracy and fineness red reference line projection at even longer work distance and higher lighting working occasions as well. Available with wide range output power of 5mW to 100mW and high power up to 150mW to 500mW, this red laser line generator is not simply used for close distance and inner room line projection, it also makes sure of quite satisfied line positioning results within the maximum work distance of 25 meters and other ambient lighting occasions as well.
According to quite easy installation and integration with industrial device or equipment, uniform beam 650nm red line laser module is used as an accessory part, which is able to make clear and precise line indication for multiple working occasions, including laser cutting machine, saw milling, lumber machine, textile garment processing, military targeting and scientific experiment work etc. Whenever this industrial alignment laser is selected with high power for longer distance and higher lighting occasions, it is a key issue to take active laser safety measures and wear proper 650nm wavelength preventing laser safety goggles until achieving easy and secured measurement conveniently.
